Fireproof Silicone coated glassfiber fabric

Silicone Coated Fiberglass Fabric :

Its high-strength and high-temperature resistant fiberglass fabric as the base material, which is coated or calendered with high-performance silicone rubber on single or double sides.

It integrates the heat resistance and high tensile strength of fiberglass fabric as well as the weather resistance and sealing performance of silicone rubber, serving as a high-performance composite fireproof material.

Application Fields:

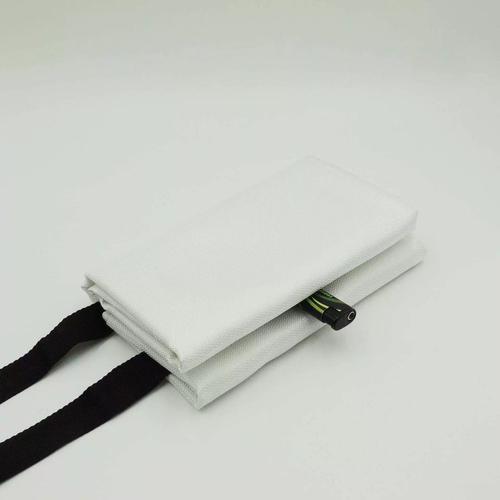

Industrial fire protection: Welding fire curtains, fire blankets, equipment fire shields Building fire protection: Fire rolling shutters, smoke barriers, fire partitions etc.

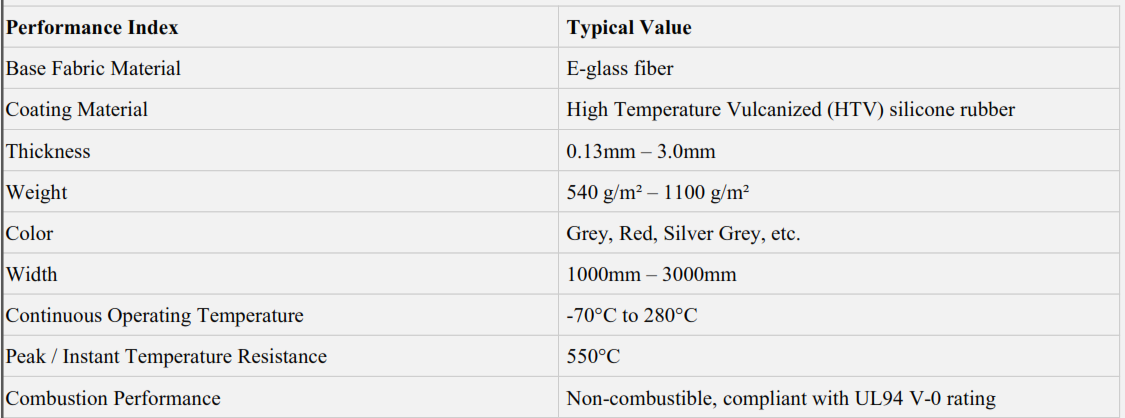

TDS:

Key Performance Features

# Excellent thermal insulation performance
# Temperature resistance: Maintains stable performance for long-term use between -70°C and 280°C
# Weather resistance: Outstanding resistance to ozone, oxygen, light and weather aging, with an outdoor service life of up to 10 years
# Electrical insulation: Dielectric constant 3–3.2, breakdown voltage 20–50 KV/mm, featuring reliable insulating properties
# Chemical corrosion resistance: Good resistance to oil, water, acid, alkali and other chemicals, and the surface is washable
# Mechanical strength: High tensile strength, flexible and tough, easy to cut and process

Product Specifications
Standard available thickness: 0.25mm, 0.45mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm

Standard roll length: 50 meters per roll.

Reference Implementation Standards
Combustion performance: GB 8624 (non-combustible grade) Fire resistance: GB/T 20102-2006 Fiberglass Woven Fabrics.
